HANSTAR titanium alloy SOLDERING POT (solder bath)

HANSTAR titanium alloy SOLDERING POT
(Solder Bath)

FOR ALL MODELS:
-THE BOILER OF HANSTAR LEAD-FREE SOLDER POT IS MADE FROM TITANIUM ALLOY FROM JAPAN. Even better than the leading brands!!!
- DESIGNED FOR LEAD- FREE SOLDERING. Perfect for Dip Soldering.
- THE TITANIUM ALLOY SOLDER POT IS VERY TOUGH, CAN RESIST HIGH TEMPERATURE, ABRASSION, CORROSION & WITH LONG SERVICE LIFE COMPARED TO OTHER BRAND WHOSE SOLDER POT IS MADE FROM GALVANIZED IRON OR STAINLESS STEEL ONLY (stainless steel is oftentimes not suitable for lead-free soldering).
- ALL MODEL WITH HIGH POWER HEATING ELEMENT (suitable to dissolve soldering tin bar rapidly, only 10 minutes to reach 250 deg C from room temperature.
- WITH DIGITAL TEMPERATURE CONTROL FOR PRECISE TEMPERATURE CONTROL. AUTO-SLEEPING , ENERGY -EFFICIENT ,
- With malfunction alarm. When not in active operation, the temperature will lower to the set one, then if in operation, the controller software will automatically adjust the temperature rapidly .
- Many Models to choose from!

RoHS of Hanstar titanium alloy Soldering Pot



Heating element for Hanstar Soldering Pot


Advantages of our Hanstar Titanium alloy Solder Pots to your benefits:

- LOWER COST, BUT BETTER QUALITY than traditional brands.
- More Durable Titanium alloy Boiler Pot, Longer Life Span of Heating Element & Pot. 1 year Warranty for the Whole Unit including the Boiler Pot (3 months for the heating element)
- The boiler pot & the heating element are consumable parts. Though our Titanium Alloy Solder Pot Boilers are built to be durable & are expected to last for at least 2 to 3years of operation, & our Heating elements are expected to last for at least 1 year, eventually, after many years of operation & operator abuses, they will need replacement. In this regard, you can be sure replacement boiler pots & heating elements are always available from us
- We can do OEM & custom size Solder Pots in 3 to 5 days ARO.
- Always with stock for ASAP delivery.


Also Available: Mini-Soldering Pot Made from Stainless Steel

Mini Soldering pot
-New design, mini size, easy to place and space saving.
-High precision stainless pot, long life used.
-Quick heating, shorten melting time.
-New insulation material, close off peripheral temp. effectively.

Model: Pot 21C
200W, Max temperature: 480degC, Melting time : 5-9 minutes , SOlder weight: 500g, Pot size Ø 50mm

Pot 41C :
300W, Max temperature: 480degC, Melting time : 5-9 minutes , SOlder weight: 2300g, Pot size Ø 100mm

Anti- Static (ESD) Brush- toothbrush style

ESD BRUSH (CONDUCTIVE brush- toothbrush style)
The handle of the antistatic electronic brush is made of conductive polypropylene handles and conductive fibres consisting of 40% polypropylene, 45% polyamide and 15% carbon fibre and its brush is made of antistatic plastic. Such brush has the features of antistatic, stable performance and easy to use. The removal of the dust and dirt on the surface of PCB plate and sensitive parts can discharge the static electricity to the ground. These brushes avoid any static build up and existing charges are reduced more effectively if operators are grounded. Resistant to high temperature.

The brushes are approved to BSEN 61340-5. (test result : Resistance= 10^5 to 10^7 ohms)
Resistant to high temperature, sweep surface dirt of PCB and sensitive element, discharge the arisen static to the ground. Suitable for use in clean, washing and package area.

- Remove static of computer and program control exchanger to protect equipment
- Remove static before check and commission electronic products and boards
- Remove static before ex-work package of electronic products
- Used for package and connection of whole machine
- Remove dust and static of material in warehouse
- Used for incoming examination of re-package of SSD elements

ESD brush Toothbrush style length:

Gj-928 (small) -
Length of body=174mm Brush Head dimension= 15(H) x 31 (L) x 9 (W) mm

Gj-925 (medium) - cross ref code: 177114 , BC-3620
Length of body=180mm Brush Head dimension= 16(H) x 36 (L) x 9.5 (W) mm

Gj-922 (large) cross ref code: 177113 , BC-3621
Length of body=175mm Brush Head dimension= 15.5(H) x 58.5 (L) x 9.5 (W) mm

SOLDER WIRE- Lead Free RoHS

LEAD- FREE SOLDER WIRE
Brand: J & D solder
ROHS compliant
Sn/ 0.7Cu
Flux: 2.5%
Available Diameter: 0.2, 0.4, 0.6 , 0.8, 1.0mm

HANSTAR REPLACEMENT SOLDERING TIPS

REPLACEMENT SOLDERING TIPS

For 900M, 900M-ESD,907, 907-ESD soldering iron:

Conical Tips:
900M-T-B General purpose tip. Standard tip as supplied with a new station.
900 M-T-I Fine point tips. Popular for SMD work.
900M-T-LB Fine point tip with extended reach. Popular for SMD work.
900M-T-S4 High thermal mass tip. Use for fine work adjacent to ground planes, heat sinks etc.
900M-T-SB High thermal mass tip. Use where more visibility is required.
900M-T-SI General purpose tip. Short reach for maximum heat transfer.

Chisel Tips:
900M-T-0.8D 0.8mm chisel tip.
900M-T-1.2D 1.2mm chisel tip.
900M-T-1.2LD 1.2mm chisel tip with extended reach.
900M-T-1.6D 1.6mm chisel tip. Popular for general purpose work.
900M-T-2.4D 2.4mm chisel tip.
900M-T-3.2D 3.2mm chisel tip. Used for soldering larger flat terminals etc.

Bevel Tips:
900M-T-0.5C 0.5mm bevel tip.
900M-T-0.8C 0.8mm bevel tip.
900M-T-1C 1mm bevel tip.

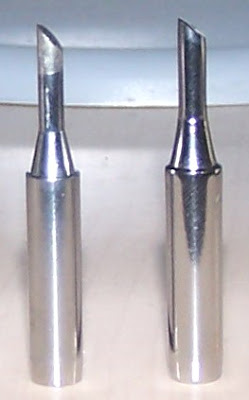

900M-T-1.5CF 1.5mm bevel tip. Tinned only on the flat.
900M-T-2C 2mm bevel tip.
900M-T-3C 3mm bevel tip.
900M-T-4C 4mm bevel tip.

Special Purpose Tips:
900M-T-1.8H Angled tip. Used for confined working areas and SMD work.
900M-T-3CM 3mm tip with indent for SMD soldering.

Works on a similar principle to 'wave' tips :
900M-T-R SMD chip tip.
900M-T-K Knife tip.






















































HANSTAR LONG-LIFE SOLDERING TIP- Lead Free
HANSIN-HANSTAR is a well-known manufacturer of soldering stations, soldering tips, & other soldering tools in China. It is also an OEM for many famous brands, & has been making lead-free soldering tip since 1998.

Our process for making long life soldering tips involves advanced techniques in electroplating, heat treatment and mechanical processing, which is improved by strong innovation to meet new challenges & market needs. With its advanced equipment and strict quality control methods, we make sure that the products have good heat conduction effect as well as long service life in the fields of lead-free soldering.

HANSIN-HANSTAR has gained many clients in China and overseas under the policy of low priced but high quality soldering tools to let the industrial clients save on the production cost. To ensure the clients’ continuous demands & urgent needs, we always maintain large stockpiles of soldering tip for immediate delivery.

Manufacturing Process:
1. The process starts with stock high-grade copper bar which is machined to produce the required shape and size.
2. Then the tip will be plated with iron, to assure its longer life span. After iron plating, the tip point will be measure & re-machined if needed to assure precise working surface area & angle.
3. Next, nickel plating is applied. Nickel plating is for protection against corrosion. 2x or 3x electroplating cycle is done depending on the types of soldering tips.
4. The last step is applying layers of tin on the solder tip to give good joint result to provide efficient heat transfer.
5. Then finished soldering tips will be measured again using precise measuring equipment & will be packed accordingly.
Hanstar Electronics Equipment always manufacture many types of replacement soldering tips to fit different brands & models of soldering station & iron like Hakko, Quick, Weller, Plato, Bonkote, & other rare soldering tips. We do customized tips to suit clients’ needs & budget & also accept OEM works with your brands printed.
In 2006, Hansin Electronics Trading (HET) was founded in the Philippines to serve as the Sales Agent for Hansin-Hanstar Soldering Tools & allied products. HET always maintain stocks of good quality soldering tips for ASAP delivery (3hours to 2 days ARO).To maintain & persuade new clients & uphold its objective of lowering the production cost of its clients, HET business policy of LOW mark-up, coupled with Efficiency & Volume Discounts allows it to sell soldering tips at the LOWEST price possible for the benefits of the clients.

We manufacture the ff replacement soldering tips:
900M series
900L series
200 series
T12 series
weller series (under improvement process)
tips for soldering iron
we also do customized soldering tips or OEM with your own brand
